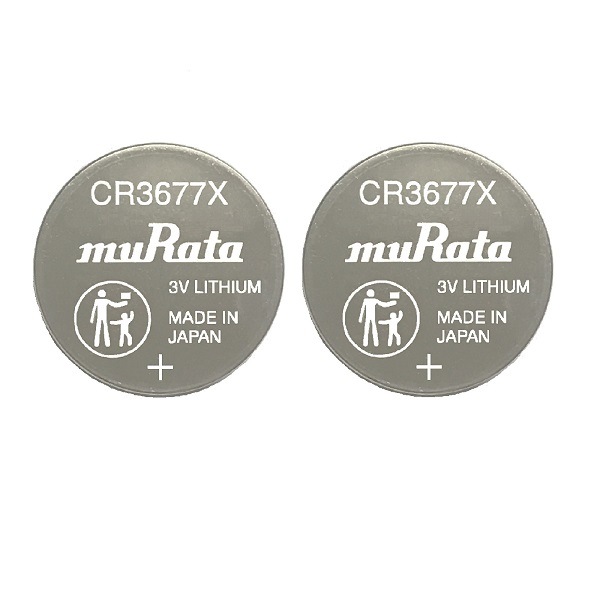

muRata CR3677X Industrial Lithium Cell Button Battery (2 Pieces)

Lightweight, High Voltage and High Energy Density. The battery voltage is 3V, almost double that of normal
alkaline or manganese batteries. This means that the number of batteries required for equipment can be halved
for maximum space saving and weight reduction.
Excellent Discharge Characteristics Voltage characteristics remain stable even for a long period of discharge, greatly improving the reliability of equipment
that uses the battery. Such equipment is also maintenancefree (battery replacement is seldom required).
Wide Operating Temperature Range. While the operating temperature range of the Standard is from -30ºC to 70ºC, the range of the Extended Temperature has been expanded from -40ºC to 85ºC. This type supports electronic components and IC of which operating temperature range is up to 85ºC in many cases. Also, the excellent storage characteristics minimize the voltage drop compared with the Standard even when the Extended
Temperature is stored for 100 days or more at 85ºC.
Maximum capacity with coin lithium battery*1. The largest capacity "CR3677X"*2 in the Extended Temperature has the largest capacity*1 among coin lithium batteries. This model has a nominal capacity higher than the CR123A battery and CR2 battery, and contributes to
downsizing and slimming of electronic devices.

Application for Automotive ・TPMS(Tire Pressure Monitoring System), Smart Key/Keyless entry, Toll Collection Device, DSrive counter, IoT/Others Smart meters, Factory Automation Instruments ・Tracking devices/Sensor node

Specification
Battery Type : Lithium 3V Coin Battery
Brand : muRata
Model : CR3677x
Battery type Coin Manganese Dioxide Lithium Batteries
Nominal Voltage 3.0V
Nominal Capacity 2000mAh
Recommended Continuous Discharge Current : 3mA or less
Maximum Pulse Discharge Current(mA) Assumption: Current to keep higher than 2V at 50% discharge with 23℃ and pulse length 3sec : 80mA
Operating Temperature Range -40℃ to 85℃
Size : Diameter 36.5mm x Height 7.7mm
Weight: 20g
Country of Origin : Japan
Package Type: OPP Bag
Battery Reference : -

SKU SKU074

Quantity in stock 10 item(s) available

Our price: SGD18.50 (USD13.56)
