muRata CR2477W High Temperature -40℃ to 125℃ Industrial Lithium Cell Button Battery (2 Pieces)

The Heat-resistant lithium coin batteries support wider operating temperature -40 to +125 °C and are ideal for devices used in severe temperature environments such as TPMS etc

FEATURES
● muRata Lithium 3V Coin Cell Battery.
● Outstanding Temperature Characteristics. Heat-resistant in rage of temperature -40℃ to 125℃
● Perfect for watches, fitness, Key FOB's or healthcare devices, and other electronic devices.
● Made in Japan

Lightweight, High Voltage and High Energy Density - The battery voltage is 3V, almost double that of normal, alkaline or manganese batteries. This means that the number of batteries required for equipment can be halved for maximum space saving and weight reduction.
Excellent Discharge Characteristics - Voltage characteristics remain stable even for a long period of discharge, greatly improving the reliability of equipment that uses the battery. Such equipment is also maintenance-free (battery replacement is seldom required).
Outstanding Temperature Characteristics - Murata's original organic electrolyte provides superb characteristics over a wide range of temperature from low to high. -40 to +85 degrees C (Extended temperature) -40 to +125 degrees C (Heat-resistant)
Excellent Leakage Resistance - The newly developed battery construction and electrolyte ensure maximum leakage resistance over a long span of time.
Excellent Long-Term Reliability - Carefully selected active materials are used for the active material as well as for the electrolyte. These materials are
sealed by Murata's innovative technology to minimize battery self-discharge. The annual self-discharge rate at room temperature and normal humidity is less than 1% of the nominal capacity.
UL Approved Parts - Sony's Coin Manganese Dioxide Lithium Batteries are approved by UL. (UL1642 File No. MH12566)
RoHS directive / European Directives - This product does not contain Mercury(Hg), Cadmium(Cd), nor Lead(Pb), and conforms to EC regulation values. (Directive 2006/66/EC, 2013/56/EU). Battery pack are excluded from RoHS directive (DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment).

APPLICATIONS
Automotive: Smart key/keyless entry, Door sill strip, Tire Pressure Monitoring System (TPMS)
IoT/Others : Tracking devices, Sensors, Security, Clinical Thermometers, Home electrical appliances, Multi-functional printer, Electronic price tags, Point Of Sale , POS) systems, Backup power source for memory

Specification
Battery type Coin Manganese Dioxide Lithium Batteries
Brand : muRata
Model : CR2477W
Nominal Voltage : 3.0V
Nominal Capacity : 1000mAh
Recommended Continuous Discharge Current 1mA or less
Operating Temperature Range : -40℃ to 125℃
Recommended Storage Condition : Temperature : 5-35℃. Humidity : 45-85%RH

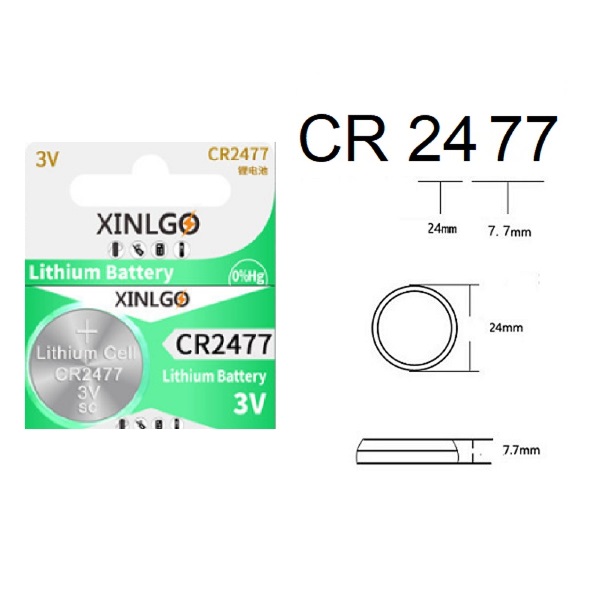

Size : 24.5mm (Length) x 7.7mm (High)
Mass (g): 11g
Country of Origin : Japan
Package Type: OPP Bag
Battery Reference : DL2477, CR2477, ECR2477, BR2477, BR2477-1W, CR2477,KCR2477, LM2477

SKU SKU1110

Quantity in stock 5 item(s) available

Our price: SGD17.50 (USD12.83)
