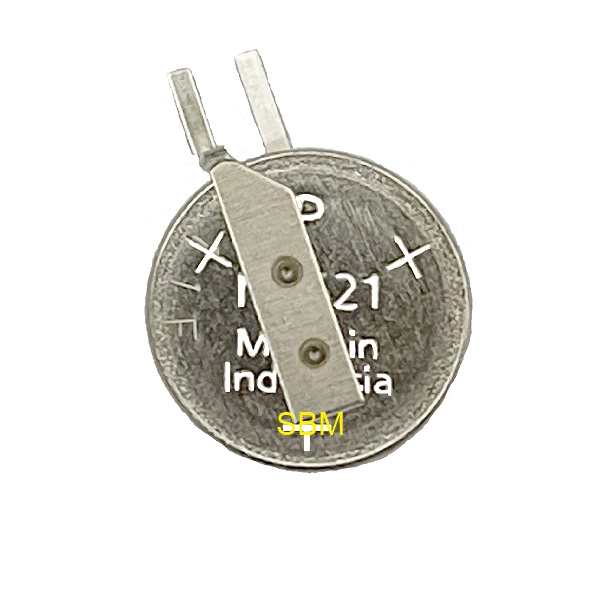

Panasonic ML-621S/DN Rechargeable Lithium Coin Cell Battery Replace ML-621FE-F11E (2 Pieces)

Stable Operating Voltage of 2.5V
Charging possible ith 2.8V.
Low self-discharges rate and long life. self discharge rate : Less than 2% a year room temperature
Charge/ Discharge Characteristics (discharge depth of 20^) 500 cycle
Usable for a wide temperature range. Operating temperature range -20℃ to +60℃. Consult Master instrument P/L whn using batteries ast
temperatures exceeding the -20℃ to +60℃
UL recognition (File MH13421

Application
Memory backup power source for Note-PC, Cellular Phone, DSC and camcorder
Electronic Keys for automation (Key less entry)
Memory Backup Power Source for fire alarm

Others
Available to meet customer;s package requirement. (Multiple cell, with tabs, with connector, etc)
Use nickel-plated phosphor bronze or stainless steel for terminal material to make contact with batteries
Also for table contact conditions, server N of contact pressure are recommended for the contact

Specification
Battery Type : Coin Cell Battery 3V 5.0 mAh RECHG 2PIN FLAT SMT-NO INS
Brand : Panasonic
Model : ML-621S/DN
Nominal Capacity : 4.5mAh
Nominal voltage : 3V
Application : Memory Back Up (MBU)
Termination : PCB vertical mount S+ S- 2mm offset
Country of Origin : Indonesia
Operation Temperature : -20℃ to +60℃
Package Type: OPP Bag
Battery Reference : ML621S/DN, ML621-F9DE, ML-621FE-F11E

SKU SKU855

Quantity in stock 10 item(s) available

Our price: SGD12.50 (USD9.32)
